When selecting materials for outdoor construction projects, property managers and landscape architects face critical decisions about durability, maintenance requirements, and environmental impact. Wood plastic composite (WPC) materials have emerged as a superior alternative to traditional wood, offering enhanced performance characteristics while maintaining natural aesthetics. This comprehensive guide explores the technical specifications, application scenarios, and competitive advantages of Linyi Xuancheng New Materials’ WPC products, including our innovative co-extruded flooring systems and specialized wall panel solutions.
Technical Specifications of WPC Flooring Systems

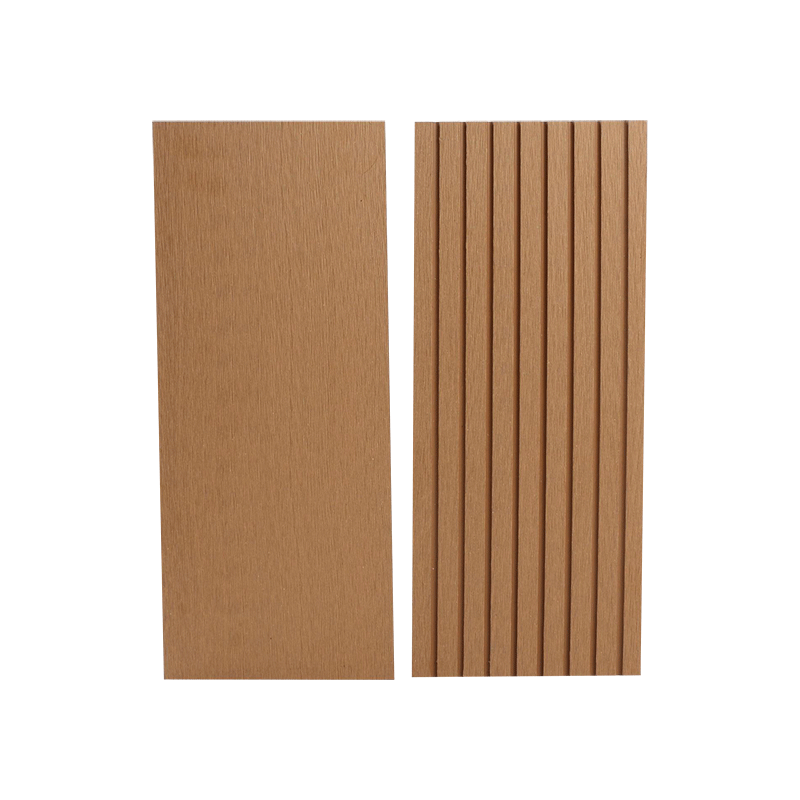

Our product portfolio features three primary WPC flooring categories designed for specific performance requirements and application scenarios. The square hole decking system represents our most cost-effective solution, featuring lightweight construction (average weight 2.8kg/m) with diverse surface texture options including wood grain, stone patterns, and modern geometric designs. This system achieves 85% material utilization during production, making it both economical and environmentally responsible.

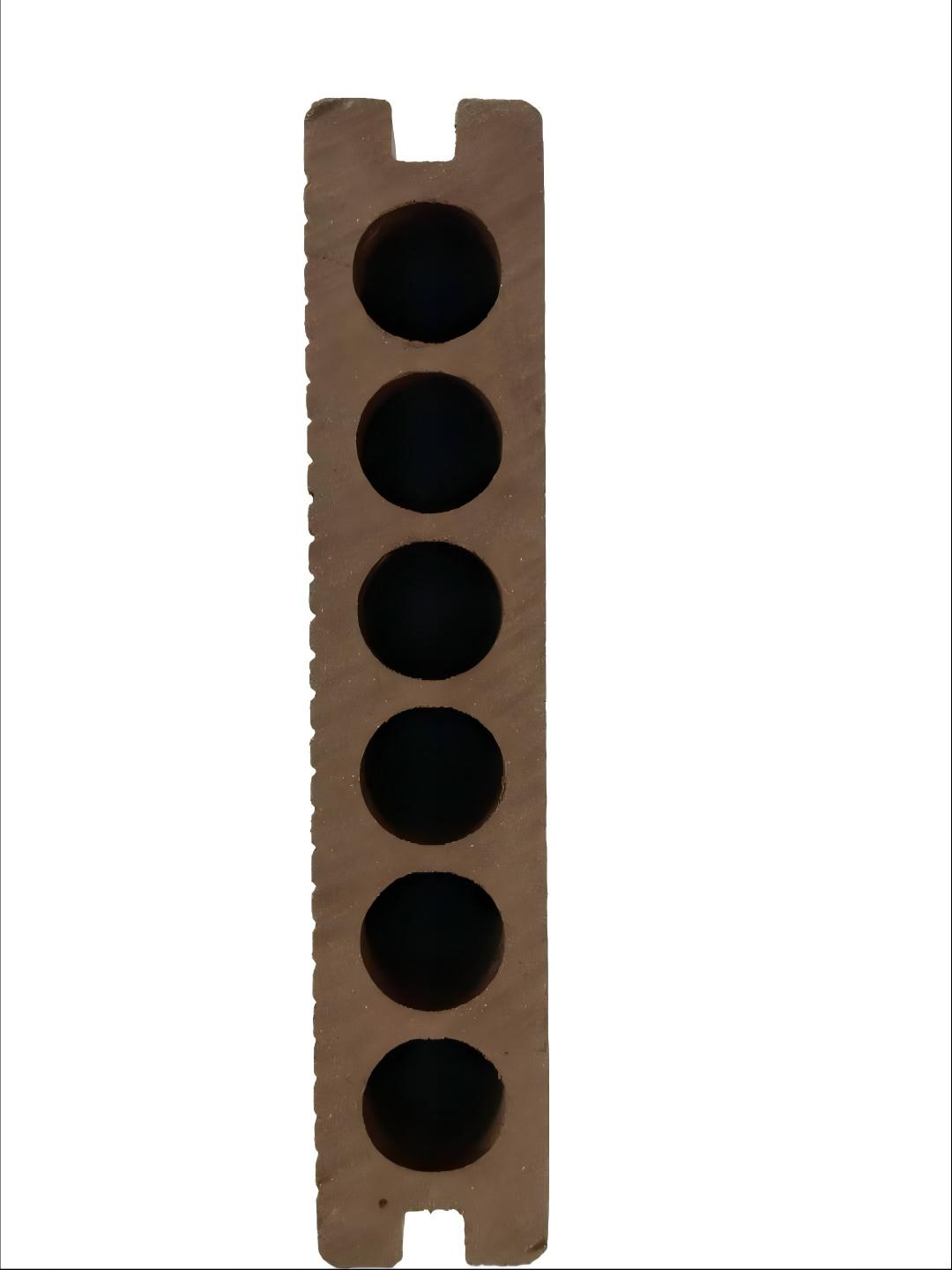

For projects requiring superior structural performance, our round hole decking incorporates circular hollow力学 designs that increase bending resistance by 32% compared to solid alternatives while improving water drainage efficiency by 45%. The unique 360° drainage channels prevent water accumulation, making this system ideal for wet environments like pool decks and waterfront walkways. Technical specifications include a maximum span of 600mm between supports and recommended installation angles between 2-5 degrees for optimal drainage.
The solid core decking system represents our premium offering, engineered for high-traffic commercial applications including public squares, transportation hubs, and stadium concourses. This heavy-duty solution features 150% greater impact resistance than standard WPC products and maintains dimensional stability within ±0.2mm across temperature fluctuations from -40°C to 70°C. The non-porous surface structure prevents bacterial growth while achieving a slip resistance rating of R11 under wet conditions.
Co-Extruded WPC Technology Advantages
Our patented co-extrusion process creates a dual-layer structure combining a rigid WPC core with a protective polymer outer shell. This advanced manufacturing technique delivers three key benefits: 1) Enhanced weather resistance with UV stabilization that maintains color fastness for 10+ years, 2) Improved scratch resistance (surface hardness 6H), and 3) Reduced maintenance requirements through self-cleaning properties that repel dirt and organic growth. The co-extruded surface maintains a consistent 0.5mm thickness across all profiles, ensuring uniform performance characteristics.
Material Composition Analysis
The core formulation consists of 60% recycled wood fibers, 30% high-density polyethylene (HDPE), and 10% proprietary additives including impact modifiers, flame retardants, and coupling agents. This optimized ratio achieves a balance between mechanical strength (tensile strength ≥22MPa) and processing flexibility. The wood component undergoes special treatment to remove lignin and extractives, preventing microbial degradation while maintaining natural fiber characteristics that contribute to the material’s authentic appearance.
The protective outer layer employs advanced polymer alloys containing nano-scale titanium dioxide particles for superior UV absorption. This layer also incorporates anti-static agents to minimize dust adhesion and hydrophobic silicone compounds that create a water-repellent surface with contact angles exceeding 110°. The combination of these technologies results in a maintenance cycle extended to 3-5 years between cleanings, compared to annual maintenance for traditional WPC products.
| Performance Parameter | Co-Extruded WPC | Traditional WPC |
|---|---|---|
| Color Retention (Years) | 10+ | 3-5 |
| Scratch Resistance | 6H | 3H |
| Maintenance Cycle | 3-5 years | Annual |
| Water Absorption (%) | 0.8 | 2.5 |
Application Scenarios & Installation Guidelines
The versatility of our WPC products enables solutions for diverse project requirements. For residential applications, the square hole decking system provides an economical choice for patio renovations, with installation costs 35% lower than hardwood alternatives. The clip-fastening system allows for quick assembly without visible screws, maintaining a clean aesthetic while enabling easy panel replacement if damaged.
Commercial projects benefit from our solid core decking’s superior load-bearing capacity. When installed over steel framework with 600mm spacing, this system supports point loads up to 500kg without permanent deformation, making it suitable for outdoor exhibition areas and temporary event platforms. The non-slip surface meets international safety standards for public access areas, including ADA compliance in the United States and EN 1339 in Europe.
Wall panel installations require careful consideration of ventilation requirements. Our长城板 design features built-in air channels that maintain proper airflow while preventing moisture accumulation behind the panels. For exterior cladding applications, we recommend a 30mm clearance between the WPC panels and structural walls, combined with waterproof membranes at joint locations. This installation method has proven effective in humid coastal climates, with field tests showing no signs of delamination after 5 years of continuous exposure.
FAQ
What makes co-extruded WPC flooring more durable than standard WPC?
The co-extrusion process creates a protective polymer layer that shields the wood-plastic core from UV rays, moisture, and physical abrasion. This dual-layer structure extends product lifespan by 3-5 times compared to single-layer WPC, while reducing maintenance requirements through self-cleaning properties and enhanced scratch resistance.
How do I choose between square hole and round hole WPC decking?
Square hole decking offers better cost efficiency and design flexibility, making it ideal for residential patios and low-traffic areas. Round hole decking provides superior structural performance and drainage, suitable for commercial广场s, pool decks, and waterfront applications. Consider your project’s load requirements, moisture exposure, and budget when making this decision.
Can WPC wall panels be used in coastal areas with high salt content?
Yes, our WPC wall panels are specifically engineered for coastal applications. The polymer outer layer contains anti-corrosion additives that prevent salt damage, while the closed-cell core structure resists moisture penetration. Proper installation with adequate ventilation and waterproofing measures ensures long-term performance in marine environments.
What maintenance is required for WPC fences over time?
WPC fences require minimal maintenance compared to traditional wood. We recommend annual cleaning with mild soap and water to remove surface dirt. For areas with heavy pollution or organic growth, power washing at 1,200 PSI can be used every 2-3 years. The protective polymer layer prevents fading, cracking, and rot, eliminating the need for painting or sealing.
How does WPC flooring perform in extreme temperatures?
Our WPC products maintain dimensional stability across temperature ranges from -40°C to 70°C. The solid core decking system shows minimal thermal expansion (0.06mm/m·°C), making it suitable for regions with significant temperature fluctuations. The co-extruded surface remains flexible in cold weather, preventing brittleness and cracking.
Summary
Linyi Xuancheng New Materials’ WPC products represent the pinnacle of outdoor material technology, combining environmental sustainability with superior performance characteristics. Our comprehensive product range addresses the specific needs of residential renovations, commercial construction projects, and municipal infrastructure developments. With 13 production lines dedicated to co-extruded products and 27 specialized lines for standard WPC, we maintain the capacity to fulfill orders of any scale while ensuring consistent quality through our ISO 9001-certified manufacturing processes.
The technical advantages of our co-extruded technology, including enhanced weather resistance, reduced maintenance requirements, and extended product lifespan, deliver significant long-term cost savings compared to traditional materials. When combined with our professional installation guidance and comprehensive warranty coverage, these benefits make WPC the optimal choice for modern outdoor construction projects seeking durability, aesthetics, and environmental responsibility.
